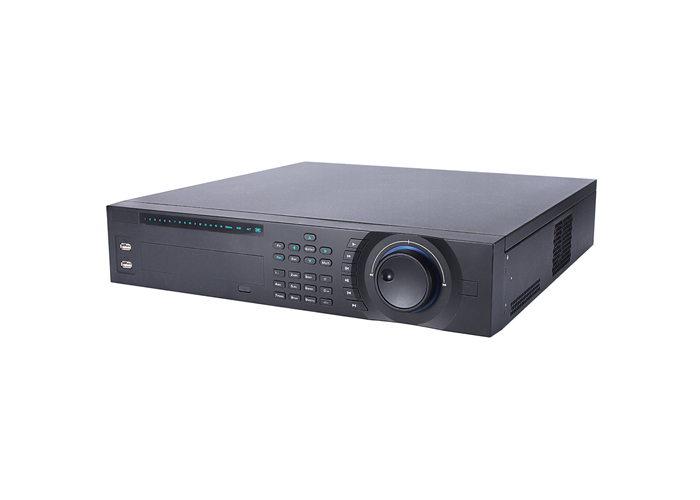

RJ8016

RJ8016

FEATURES

SPECIFICATION

DIAMENSIONS

RELATED ITEMS

1. 16 channel full D1 standalone DVR
2. Up to 16 cameras with full HD 1080P display
3. H.264 dual-stream video compression
4. Full channel D1(4CIF) realtime recording
5. HDMI / VGA / TV / Spot (BNC) synchronous video output
6.Live, recording, playback, backup & remote access
7. 16 channel simultaneous realtime playback & smart search
8. Smart video detection: MD, camera blank, video loss
9. 3D intelligent positioning with PTZ dome camera
10. Easy backup: USB devices, CD/DVD-RW & network download
11. Alarm triggering screen tips, buzzer, PTZ, e-mail & FTP upload
12. Support 8 SATA HDDs & CD/DVD-RW, 1 eSATA, 3 USB2.0
13. Built-in web server, multi-DVR client, DMSS & CMS

Main Processor : High performance embedded microprocessor
Operating System : Embedded LINUX
System Resources : Pentaplex function: live, recording, playback, backup & remote access
Control Mode : Front panel, USB mouse, IR remote control, Keyboard, Network
Video Input : 16 channel, BNC(1.0Vp-p, 75Ω)
Standard : NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Video Output : 1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC(1.0Vp-p, 75Ω)
Audio Input : 4 channel, BNC(200-2800mV,30KΩ)
Loop Output : 16 channel
Audio Output : 1 channel, BNC(200-3000mV,5KΩ)
Bidirectional Talk : 1 channel Input, BNC(200-2800mV, 30KΩ), 1 channel Output, BNC(200-3000mV, 5KΩ)
Display Split : 1/4/8/9/16
Spot Split : 1/4/8/9/16
Resolution : 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Tour Display : Support
Privacy Masking : 4 self-defined four-sided zones for privacy masking for each camera
OSD : Camera title, time, video loss, camera lock, motion detection, recording
Video/Audio Compression : H.264 / G.711
Image Resolution : D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF 704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Encoding Speed : Main Stream: D1/HD1/2CIF/CIF(1~25/30fps),Extra Stream: CIF/QCIF(1~25/30fps)
Bit Rate : 32~4096Kb/s
Image Quality : 1~6 level(level 6 is the best, VBR effectively)
Recording Mode : Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Recording Priority : Manual /Alarm /MD /Regular
Recording Interval : 1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.
Trigger Events : Recording, PTZ movement, Tour, Alarm, Email, FTP, Spot, Buzzer & Screen tips
Motion Detection : Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Video Loss & Camera Blank : Support
Alarm Input : 16 channel
Relay Output : 6 channel
Playback Channel : 1/2/4/All
Search Mode : Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle,Backup selection, Digital zoom(any size)
Backup Mode : Flash drive/ USB HDD/ USB CD&DVD-RW / eSATA Device / Built-in SATA burner/ Network download
Ethernet : RJ-45 port (10/100M/1000M)
Network Functions : HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server
Remote Operation : Monitor, PTZ control, Playback, System setting, File download, Log information
Hard Disk : 8 SATA ports, 8 HDDs or 6 HDDs + 1 CD/DVD-RW, Max 2TB per HDD supported
eSATA : 4 External SATA ports, up to 12TB
Space Occupation : Audio: 28.8MB/H, Video: 56~1800MB/H
HDD Management : Hard disk hibernation technology, HDD faulty alarm & Raid(Redundancy)
USB Interface : 3 ports, 1 for mouse control, 2 for backup
RS232 : keyboard, PC communication
RS485 : PTZ control
Power Supply : AC 100-240V,50/60 Hz
Power Consumption : 40W
Working Environment : -10 ~+55°C / 10~90%RH / 86~106kpa
